分類 種類
JAM U型鋼槽及配件系統

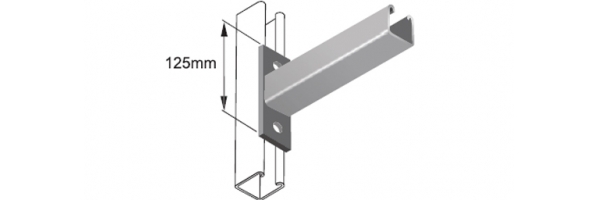

CA01 懸臂鋼支架

Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
Steel
規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 40011
No.

A

mm

Recommeded UDL Kgf

for vertical channel

DR41

Wt. each

kg
CA01/150 160 680 0.80
CA01/300 3210 356 1.17
CA01/450 460 240 1.59
CA01/600 610 181 2.03
CA01/750 760 143 2.53



Grade 304 & 316 Stainless Steel and special length available on request
Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
