JAM 緊固系列 (拉爆螺絲)

JAM-S 套筒拉脹式膨脹螺絲 (A2/304 不銹鋼)

A2/ 304 不銹鋼

Application
• installing pipe bracket, trucking, cable tray and suspended ceilings. Light to medium metalwork, hand rails, signs and gates etc.



Base material
• concrete, brick, masonry and hollow brick (Concrete fcc -30N/mm2)

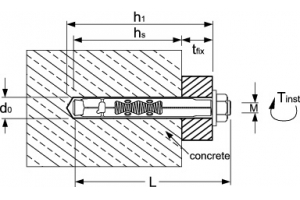

Installation of JAM-D Drop In Anchor

Item No. Description

Hole

Diameter do

(mm)

Thread Size x L

(mm)

Min. Hole

Depth hs

(mm)

Tightening Torqure

Tinst (Nm)

Fixture

Thickness

tfix (mm)

Base Material

Thickness (mm)

Recommended

Tensile Load

(kN)

Recommended

Shear Load

(kN)

2010606040 S 8 X 40 A4 8 M6 X 47 28 8 12 80 1.9 3.0
2010608050 S 10 X 50 A2 10 M8 X 60 32  25 18 100 3.8 4.4
2010610060 S 12 X 60 A2 12 M10 X 69 38 40 22 120 5.5 7.2




1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Push anchor carefully with hand into hole until nut and washer are flush with fixture.

4. Tighten with the wrench to the recommended torque value.
