JAM U型鋼槽及配件系統

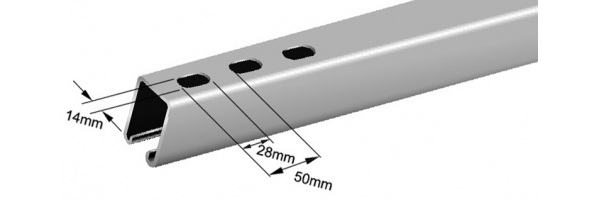

DR62S U型鋼槽

規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 4006041623 (3 meters long) 4006041626 (6 meters long)

Span or colunm

unsupported

Height in mm

Uniform Load

at 175 N/mm2

Stress. kg

Deflection

in mm at

175 N/mm2

Uniform Load

at Max. Deflcc. Of

1/200th. Span .kg

Uniform Load

at Max. Deflcc. Of

1/360th. Span .kg

 Max. Load of

column loaded

@ Centroid kg

 Max. Load of

 column loaded

 @slot face kg

 500 -  - - - 6564 3604
1000 759  2.67  - -  3256  2047
 1500  506  6.02 - 350  1674  1554
 2000  379  10.70 354 196 1083 794
 2500  303  16.73 226 126  792  626
 3000  253  24.09 157 87  621  514
