JAM U型鋼槽及配件系統

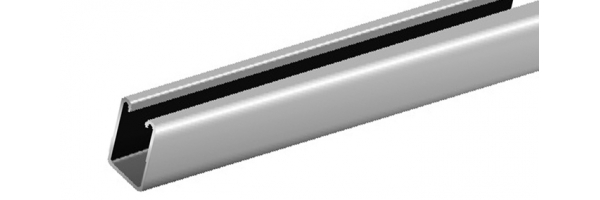

DR62 U型鋼槽

規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 4007041623 (3 meters long) 4007041626 (6 meters long)

Span or colunm

unsupported

Height in mm

Uniform Load

at 175 N/mm2

Stress. kg

Deflection

in mm at

175 N/mm2

Uniform Load

at Max. Deflcc. Of

1/200th. Span .kg

Uniform Load

at Max. Deflcc. Of

1/360th. Span .kg

 Max. Load of

column loaded

@ Centroid kg

 Max. Load of

 column loaded

 @slot face kg

 500 -  - - - 7050 3604
1000 816  2.49  - -  3063  2095
 1500  544  5.60 - -  1570  1028
 2000  408  9.97  - 227 1017 758
 2500  326  15.58 261 145  743  595
 3000  272  22.43 181 101  581  486
