JAM U型鋼槽及配件系統

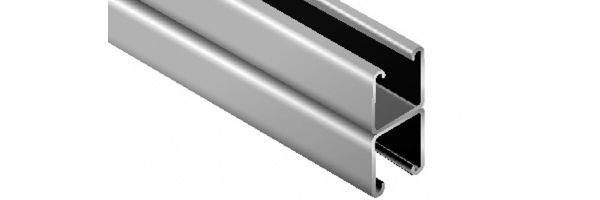

DR41D U型鋼槽

Steel
規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 4009041413 (3 meters long) 4009041416 (6 meters long)

Span or colunm

unsupported

Height in mm

Uniform Load

at 175 N/mm2

Stress. kg

Deflection

in mm at

175 N/mm2

Uniform Load

at Max. Deflcc. Of

1/200th. Span .kg

Uniform Load

at Max. Deflcc. Of

1/360th. Span .kg

 Max. Load of

column loaded

@ Centroid kg

 Max. Load of

 column loaded

 @slot face kg

 500 -  - - - 11682 2864
1000  1253  2.15  - -  10451  2783
 1500  835  4.84 - 718  7790  2551
 2000  626  8.61  - 404 5068 2170
 2500  507  13.45 465 258  3410  1796
 3000  417  19.37  323 179  (2427)  (1480)
