JAM U型鋼槽及配件系統

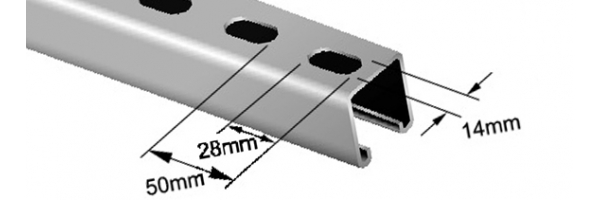

DR41S U型鋼槽

Steel
規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 4002041413 (3 meters long) 4002041416 (6 meters long)

Span or colunm

unsupported

Height in mm

Uniform Load

at 175 N/mm2

Stress. kg

Deflection

in mm at

175 N/mm2

Uniform Load

at Max. Deflcc. Of

1/200th. Span .kg

Uniform Load

at Max. Deflcc. Of

1/360th. Span .kg

 Max. Load of

column loaded

@ Centroid kg

 Max. Load of

 column loaded

 @slot face kg

 500 819  1.05  - - 5100 1635
1000  409  4.18  - 271  3284  1389
 1500  273  9.41 217  120  1899  1062
 2000  204  16.73  122 67 1297 843
 2500  163  26.15 78 43  970  691
 3000  136  37.65  54 30  (761)  (578)
