JAM U型鋼槽及配件系統

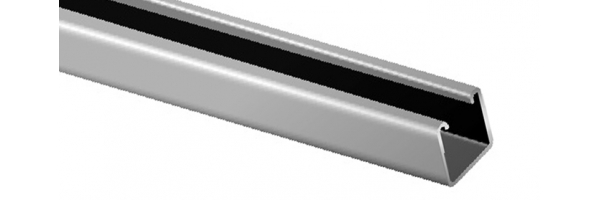

DR41 U型鋼槽

規格 BS 1449 Part2:1983
規格 BS 6946:1988
後期加工 hot dip galvanized to ISO 1461:1999
原料 (產品編號) 4004041413 (3 meters long) 4004041416 (6 meters long)

Span or colunm

unsupported

Height in mm

Uniform Load

at 175 N/mm2

Stress. kg

Deflection

in mm at

175 N/mm2

Uniform Load

at Max. Deflcc. Of

1/200th. Span .kg

Uniform Load

at Max. Deflcc. Of

1/360th. Span .kg

 Max. Load of

column loaded

@ Centroid kg

 Max. Load of

 column loaded

 @slot face kg

 500 884  0.95  - - 5379 1650
1000  442  3.82  - 321  3373  1395
 1500  294  8.60 257  142  2020  1093
 2000  221  15.29  144 80 1395 879
 2500  176  23.89 92 51  1044  725
 3000  147  34.40  64 35  (816)  (607)
