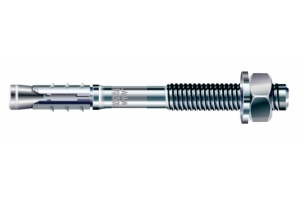

JAM-W 拉脹式膨脹螺絲 (A4/316 不銹鋼)
Features
• dependable, economical anchor, externally threaded
• efficient through fixing, torque, controlled expansion
Application
• high racking, safety barriers, hand rails, channels, brackets, suspended ceilings, cladding system, facade substructures
Base material
• concrete
(Non-cracked concrete fcc = 30N/mm2)
|
|
|
|
|
|
Recommended Load * |
||
Item No. |
Description |

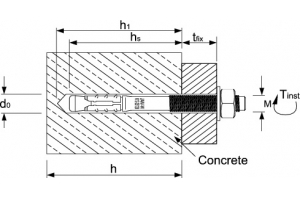

Bore x Hole Depth d0 x h1 (mm) |
Setting Dpth hs (mm) |
Tightening Torque Tinst (Nm) |
Fixture Thickness tfix (mm) |
Base Material Thickness h (mm) |
Tensil Load (kN) |
Shear Load (kN) |
2000206065 | W M6-10/65 A4 | 6 x 55 | 46 | 8 | 10 | 100 | 2.90 | 2.54 |
2000208075 | W M8-10/75 A4 | 8 x 65 | 55 | 15 | 10 | 100 | 4.67 | 5.55 |
2000208090 | W M8-25/90 A4 | 8 x 65 | 55 | 15 | 25 | 100 | 4.67 | 5.55 |
2000210070 | W M10-10/70 A4 | 10 x 60 | 48 | 30 | 10 | 100 | 4.01 | 7.86 |
2000210090 | W M10-20/90 A4 | 10 x 70 | 58 | 30 | 20 | 100 | 5.86 | 7.86 |
2000210110 | W M10-40/110 A4 | 10 x 70 | 58 | 30 | 40 | 100 | 5.86 | 7.86 |
2000212090 | W M12-5/90 A4 | 12 x 80 | 70 | 50 | 5 | 120 | 7.58 | 11.00 |
2000212105 | W M12-10/105 A4 | 12 x 90 | 80 | 50 | 10 | 150 | 9.90 | 11.00 |
2000212120 | W M12-25/120 A4 | 12 x 90 | 80 | 50 | 25 | 150 | 9.90 | 11.00 |
2000216100 | W M16-5/100 A4 | 16 x 90 | 75 | 100 | 5 | 150 | 9.40 | 19.00 |
2000216140 | W M 16-5/100 A4 | 16 x 110 | 95 | 100 | 25 | 180 | 15.11 | 19.00 |

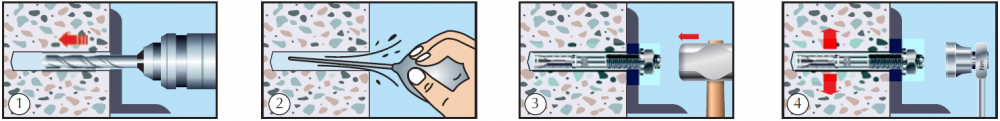

Installation of JAM-W A4 Wedge Anchor
1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Drive anchor carefully with hammer into hole until nut and washer are flush with fixture.
4. Tighten with the torque wrench to the recommended torque value.
