分類 種類
德國曼卡特MKT 緊固系列

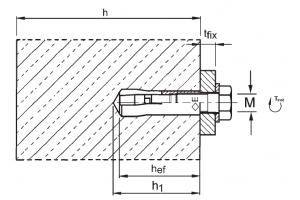

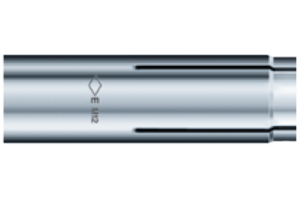

MKT E 內迫式膨脹螺絲 (電鍍鋅層)

電鍍鋅層

Steel, zinc plated

ETA approval for non-cracked concrete



Description
European approved Drop-in Anchor E: Deformable expansion cone adjusts to strength of concrete as well as to size of hole within the variation range of a drill bit from new to worn. The anchor assures easy and safe fastening. The shoulder of the setting tool contacts the anchor in any case. The marking setting tool leaves four significant marks on each anchor as proof of correct expansion. Spacing and edge distance are much more favourable than for most Drop-in Anchors on the market.


Applications
Attaching suspended ceilings, ventilation and sprinkler systems, structural steel, brackets, threaded rods.


Range of concrete quality: C20/25 - C50/60

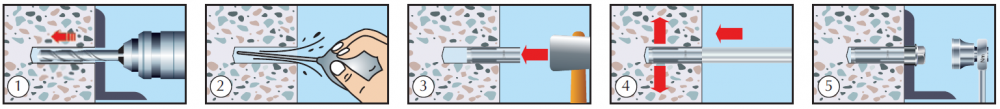

Installation of MKT E Drop In Anchor

1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Insert anchor into the hole and tap flush with the surface.
4. Install anchor using proper setting tool. Setting tool to be driven into anchor until setting tool's shoulder meets top of anchor.
5. Install fixture and tighten anchor to specified torque. Refer to approvals and listings for design and building code compliance.



Setting Tool for Drop-in Anchor E

Item No

Safety Setting tool for drop-in anchor E
2022308000 E-MSW 8
2022310000

E-MSW 10

2022312000 E-MSW 12
2022316000 E-MSW 16
2022320000 E-MSW 20



Item No

Safety Setting tool for drop-in anchor E
2022405000 E-MSW 5
2022406000

E-MSW 6

2022408000 E-MSW 10
2022412000 E-MSW 12
2022416000 E-MSW 16
2022420000 E-MSW 20
