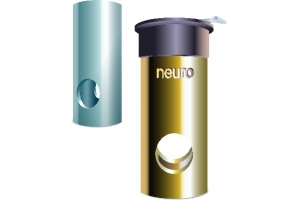

NEURO 起重插座

neuro lifting socket offers extremely good load bearing quality especially on angled loads.
neuro socket require additional reinforcement to be channeled through the cross hole for transferring the force into the concrete.

Manufactured from either high grade precision steel tube zinc plated or special stainless steel tube.
The thread is finished in RD. (threaded end with metric gradient).

Description

Item No.

zinc plated

Item No.

hot dip

galvanized

SWL

kg

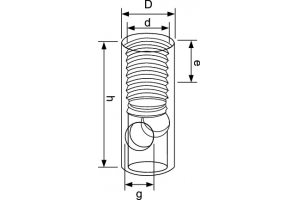

Dimensions / mm

Packing

per box

D g h e
Socket Rd 12 2030112040 2030412040 500 15 8 40 22 100
Socket Rd 14 2030114047 2030414047 800 18 10.5 47 25 100
Socket Rd 16 2030116054 2030416054 1200 21 13 54 27 100
Socket Rd 18 2030118065 2030418065 1600 24 13 65 34 100
Socket Rd 20 2030120069 2030420069 2000 28 15.5 69 35 100
Socket Rd 24 2030124078 2030424078 2500 31 18 78 43 100
Socket Rd 30 2030130103 2030430103 4000 40 22.5 103 56 50
Socket Rd 36 2030136125 2030436125 6300 47 27.5 125 68 25
Socket Rd 42 2030142145 2030422145 8000 54 32 145 80 20
Socket Rd 52 2030152195 2030452195 12500 67.2 40 165 100 10



SWL: Safe Work Load

Stainless Steel on request
